automotive LiDAR applications are easiest to evaluate when the reader starts from the real work problem. Flash LiDAR for near-field automotive perception is useful when a vehicle needs dense depth information across a nearby area at once. Parking, curb detection, corner coverage and low-speed obstacle functions depend less on a headline maximum range than on close-in blind zones, depth completeness, sunlight behavior, mounting geometry and processing latency. Those details should be tested around the real vehicle body.
The quick answer is that Flash LiDAR for near-field automotive perception should be selected around the physical scene, not around a single maximum number. The sensor must cover the target, produce data the software can use, and support the response the machine needs to take.
For related internal planning, compare this requirement with 3D LiDAR sensor options, near-field perception solutions, and the broader LidarStar Flash LiDAR catalog. These references keep the discussion tied to practical deployment choices.
Why near-field coverage is a geometry problem: what to check
A vehicle body, bumper or mirror can block portions of the nearby scene, and small mounting changes can create blind wedges close to the vehicle. For Flash LiDAR for near-field automotive perception, this question should be tied to a defined target, distance, viewpoint and decision. Otherwise, a technically correct measurement can still be irrelevant to the application.
Map the sensor field of view against the exact body geometry, then move low and narrow objects through every edge and corner zone. Change one variable at a time, keep raw or minimally processed data, and record the exact configuration. The goal is a result another engineer can reproduce rather than a one-time demonstration.
Judge continuous usable depth coverage rather than assuming the quoted field of view remains unobstructed after installation. Use IEEE research on automotive Flash LiDAR as an independent reference while defining terminology, assumptions, or test evidence.
How a Flash LiDAR depth frame is different: what to check
Flash LiDAR illuminates a scene and captures a depth image without mechanically sweeping one narrow beam across the full frame. For Flash LiDAR for near-field automotive perception, this question should be tied to a defined target, distance, viewpoint and decision. Otherwise, a technically correct measurement can still be irrelevant to the application.
Inspect depth completeness, edge behavior, pixel confidence and motion response using objects at several depths in the same frame. Change one variable at a time, keep raw or minimally processed data, and record the exact configuration. The goal is a result another engineer can reproduce rather than a one-time demonstration.
Confirm the depth format, invalid-pixel convention, timestamp and optical frame before integrating obstacle logic. Use IEEE work on Flash LiDAR background-light cancellation as an independent reference while defining terminology, assumptions, or test evidence.
| Decision area | Practical question | Evidence to save |
|---|---|---|
| Coverage | Does the field of view include the real target? | Photos, scan captures, and route notes |
| Timing | Can the controller act soon enough? | Timestamps and behavior logs |
| Environment | Do lighting, dust, vibration, or surfaces change results? | Difficult-scene examples |
| Integration | Can software use the output directly? | Driver, frame, and message checks |
| Maintenance | Can the site keep it aligned and clean? | Service access review |
Parking curb and low-obstacle scenarios: what to check
Near-field perception must distinguish curbs, wheel stops, bollards, dropped cargo, people and objects partly hidden by the vehicle body. For Flash LiDAR for near-field automotive perception, this question should be tied to a defined target, distance, viewpoint and decision. Otherwise, a technically correct measurement can still be irrelevant to the application.
Build a low-speed parking route with surveyed curb heights, small boxes, a pedestrian form and angled approaches. Change one variable at a time, keep raw or minimally processed data, and record the exact configuration. The goal is a result another engineer can reproduce rather than a one-time demonstration.
Record the earliest stable depth evidence and whether the planned warning or braking response occurs with sufficient margin. Use IEEE seminar on SPAD-based 3D imaging as an independent reference while defining terminology, assumptions, or test evidence.
Sunlight wet surfaces and reflective vehicle parts: what to check
Direct sun, wet asphalt, dark rubber, glossy paint and retroreflective materials can produce very different depth confidence. For Flash LiDAR for near-field automotive perception, this question should be tied to a defined target, distance, viewpoint and decision. Otherwise, a technically correct measurement can still be irrelevant to the application.
Repeat the same target layout in shade, low sun and wet conditions while documenting exposure and confidence settings. Change one variable at a time, keep raw or minimally processed data, and record the exact configuration. The goal is a result another engineer can reproduce rather than a one-time demonstration.
Define how invalid or low-confidence pixels affect the vehicle function instead of silently treating every missing depth as free space. Use ROS depth image processing components as an independent reference while defining terminology, assumptions, or test evidence.
Mounting calibration latency and cleaning: what to check

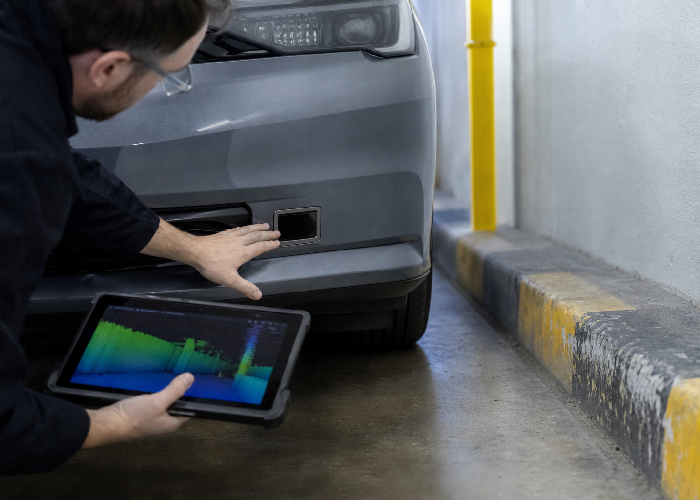

A close-range depth sensor needs a rigid view, accurate body-frame transform, low processing delay and an optical window that can be cleaned. For Flash LiDAR for near-field automotive perception, this question should be tied to a defined target, distance, viewpoint and decision. Otherwise, a technically correct measurement can still be irrelevant to the application.
Measure the mounted transform, drive over representative vibration, log frame timing and review service access around the fascia. Change one variable at a time, keep raw or minimally processed data, and record the exact configuration. The goal is a result another engineer can reproduce rather than a one-time demonstration.
Repeat a short known-object check after removal, cleaning or replacement so calibration drift is caught early. Use NHTSA weather effects study for LiDAR sensors as an independent reference while defining terminology, assumptions, or test evidence.
A close-range acceptance route around the vehicle: what to check

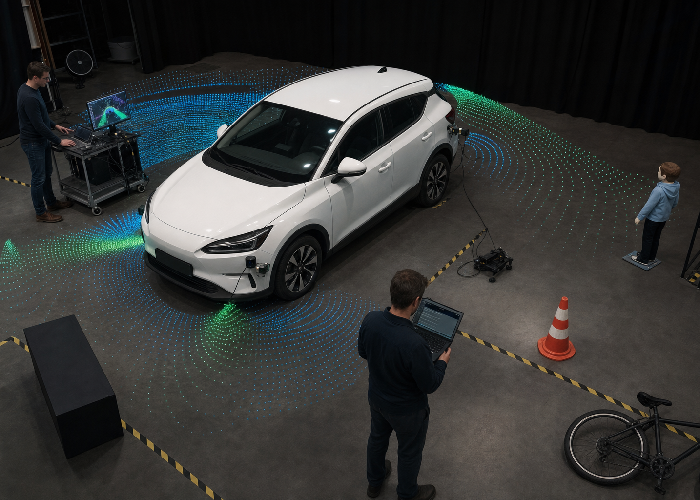

A useful route circles the vehicle with low, narrow, dark, reflective and partially occluded targets at measured positions. For Flash LiDAR for near-field automotive perception, this question should be tied to a defined target, distance, viewpoint and decision. Otherwise, a technically correct measurement can still be irrelevant to the application.
Approach each target straight and at an angle, include steering motion, and run both positive and negative cases. Change one variable at a time, keep raw or minimally processed data, and record the exact configuration. The goal is a result another engineer can reproduce rather than a one-time demonstration.
Approve the function only where depth continuity, latency and final vehicle response repeat across the intended operating envelope. Invite operators and maintenance staff to review the result because they see workflow and service conditions that a bench test misses.
A field scenario that exposes the weak point
Imagine the first pilot for Flash LiDAR for near-field automotive perception looks convincing during a calm demonstration. The expected target is visible, the visualization is clean, and the operator sees the intended event. The scene changes during normal work: flash lidar illuminates a scene and captures a depth image without mechanically sweeping one narrow beam across the full frame. At the same time, mounting, timing, background conditions, or processing removes some of the margin that existed during the demonstration. The system still produces data, but the decision arrives late, becomes unstable, or creates an unnecessary alert.
The useful response is not to change several filters at once. Recreate the difficult scene at reduced operational risk, preserve the original configuration, and follow this test: Inspect depth completeness, edge behavior, pixel confidence and motion response using objects at several depths in the same frame. Then repeat with one controlled change and compare raw measurements, interpreted output, and final behavior on the same timeline. This reveals whether the limiting step is sensing, geometry, software, integration, or the acceptance rule itself.
Close the investigation with an operator-visible criterion. Confirm the depth format, invalid-pixel convention, timestamp and optical frame before integrating obstacle logic. Record the target, distance, direction, environmental state, software version, first reliable detection, and the action that followed. Keep one failed run beside the passing run. That pair is more useful for future maintenance than a polished final screenshot because it shows exactly which boundary the installation must continue to respect.
Pilot evidence before selection
A pilot for Flash LiDAR for near-field automotive perception should be written like an engineering record. Record the test location, sensor height, mounting angle, route or scene boundary, object size, lighting, surface condition, software version, and the exact behavior expected from the system. The notes should be factual enough that another engineer can repeat the test without guessing what the first team meant.
Collect three layers of evidence. The first layer is raw or minimally processed sensor data. The second layer is the interpreted result, such as an object, track, zone event, depth map, or filtered cloud. The third layer is the actual behavior that followed, such as a stop, warning, route update, measurement, or message. When those layers are saved together, the team can identify whether a problem came from sensing, processing, or decision logic.
Start with a calm baseline, then add ordinary difficulty one variable at a time. Run the same scene with a normal target, a dark target, an angled target, a small target, and a partially hidden target. If the system changes behavior, the team can see which condition caused the change. This slower rhythm usually saves time because it avoids a confusing pile of uncontrolled test results.
The pilot should also include a negative case that should not trigger action. That may be an object outside the route, a person standing in a safe area, a pallet behind a boundary, or motion that is moving away from the machine. Negative cases reveal whether the setup is selective or merely active. A dependable deployment needs both reliable detection and calm behavior when nothing important is happening.
Use real site timing. A sensor that looks stable while the machine is parked may not support the same behavior when a robot is turning, a conveyor is moving, or a vehicle is crossing the monitored zone. Save timestamps and controller responses, not only screenshots. Timing evidence is often what separates a promising demonstration from a system that can be trusted in daily work.
Common mistakes that hide weakness
The first mistake is testing only ideal scenes. Real deployments include dark objects, angled surfaces, temporary clutter, vibration, cleaning residue, glare, partial occlusion, and people working in unpredictable ways. Include the difficult cases early, because those cases decide whether the application can scale.
The second mistake is comparing a single headline number. Range, field of view, angular detail, frame rate, interface, environmental fit, output format, mounting, and support all matter. Their importance changes by application, so the comparison matrix should be built from the job rather than from a generic specification list.
The third mistake is deleting failure examples after the setup improves. Keep the missed object, false return, unstable track, delayed response, or poor mounting example. Those files explain why a later choice was made and help support staff recognize symptoms when the site changes. A clean final report without negative evidence is less useful than a practical record that shows the limits clearly.
The fourth mistake is reviewing only the engineering view. Operators know where people pause, where pallets are staged temporarily, which aisles become crowded, and which maintenance routines happen under time pressure. Their observations can change the sensor position, cable route, cleaning plan, or alert logic before the system becomes expensive to modify.
Another subtle mistake is ignoring the data contract. The receiving software must know the units, coordinate frame, timestamp behavior, confidence fields, and reset behavior. Clear data contracts prevent a good sensor from becoming an unreliable system because downstream code interpreted the output differently than the integration team expected.
Buying checklist
Before choosing hardware for Flash LiDAR for near-field automotive perception, review the planned sensor position, required coverage, smallest target, dark-object behavior, required update timing, controller interface, environment, and service routine. If any item is unknown, run a small test before ordering hardware for multiple locations.
Ask for output examples in the format your software will use. A polished viewer is helpful for discussion, but the production system may need a scan topic, point cloud, object list, zone event, depth frame, or velocity field. Confirm driver availability, timestamp behavior, coordinate frames, configuration files, and recovery steps before treating the sensor as integration-ready.
Finally, review maintenance before purchase. The window must be reachable for cleaning, the bracket should resist vibration, the cable route should avoid strain, and the reset procedure should be clear to people who did not build the pilot. A technically strong sensor that is hard to maintain will lose reliability after installation.
Handoff notes for the next engineer
The handoff package for Flash LiDAR for near-field automotive perception should include the final sensor position, mounting photos, cable route, host computer, interface settings, frame names, filter parameters, saved examples, and the reason important choices were made. It should also state the known limits plainly. The next engineer needs to know what was proven, what was rejected, and what still needs a longer trial.
Do not rely on memory for calibration or configuration. Save the files, screenshots, logs, and version notes beside the article or project record. If the sensor is moved, replaced, cleaned, or connected to a different controller, the team should have a repeatable check that confirms the system still sees the same targets in the same way.
A final readiness review should separate proven behavior from promising behavior. Proven behavior has repeated evidence under the expected scene conditions. Promising behavior has worked in a limited test but still needs more hours, weather, traffic, shifts, surfaces, or maintenance cycles. This distinction helps teams scale carefully without slowing down projects that already have enough evidence.
Write the acceptance test in plain language before the final run. State what target must be detected, where it will be placed, how fast the machine or object will move, what output is expected, and what response should follow. A pass should be observable by both the engineer and the site owner. If the pass condition cannot be written clearly, the project definition is not ready for a purchase decision.
Keep the acceptance test small enough to repeat after installation. A five-minute check that operators can run after cleaning, relocation, or software updates is often more valuable than a complex test that no one repeats. Repeatable checks protect the original sensor decision after the system leaves the pilot bench and make future maintenance decisions easier for every site team.
When the project is ready for a shortlist, review LiDAR sensor product families and share the site details through request a Flash LiDAR recommendation. A specific request produces a better recommendation than a broad sensor comparison.
Before the final decision, repeat the most difficult Flash LiDAR for near-field automotive perception test with the production mounting, production power supply, and production software configuration. A bench result is useful, but it does not include the vibration, cable routing, timing, contamination, or occlusion that appears on the finished machine.
Have someone who did not build the pilot run the short acceptance check. If that person cannot identify a pass, a failure, and the correct recovery step from the written instructions, the handoff is incomplete. This review catches assumptions that the original engineering team may no longer notice.
Record the final limits beside the successful results. State which target sizes, materials, angles, weather conditions, speeds, and mounting positions were tested, and which were not. Honest boundaries make future changes safer and give procurement a defensible basis for scaling the installation.
Conclusion
Flash LiDAR for near-field automotive perception should be chosen from the job it must perform, the evidence it can produce, and the behavior the machine needs to take. Start with the real scene, test difficult objects, keep raw and processed data, and compare sensors against the deployment conditions. That approach turns Flash LiDAR for near-field automotive perception from a promising specification into a practical engineering decision.
FAQ
What is the most important first step for Flash LiDAR for near-field automotive perception?
Define the physical job and the decision the system must support before comparing specifications.
How should a team validate performance?
Use real objects, real mounting positions, real speed, and saved evidence from both successful and difficult runs.
Can one sensor solve every application?
No. The right choice depends on range, field of view, target size, environment, software output, and maintenance needs.
What information helps with sensor selection?
Scene photos, target dimensions, mounting limits, interface needs, environment notes, and expected machine behavior are the most useful details.
Why keep failed test examples?
Failure examples show limits clearly and prevent future teams from repeating the same mounting, filtering, or integration mistake.
