ND-Jetson-GMSL-8CH Product Specifications

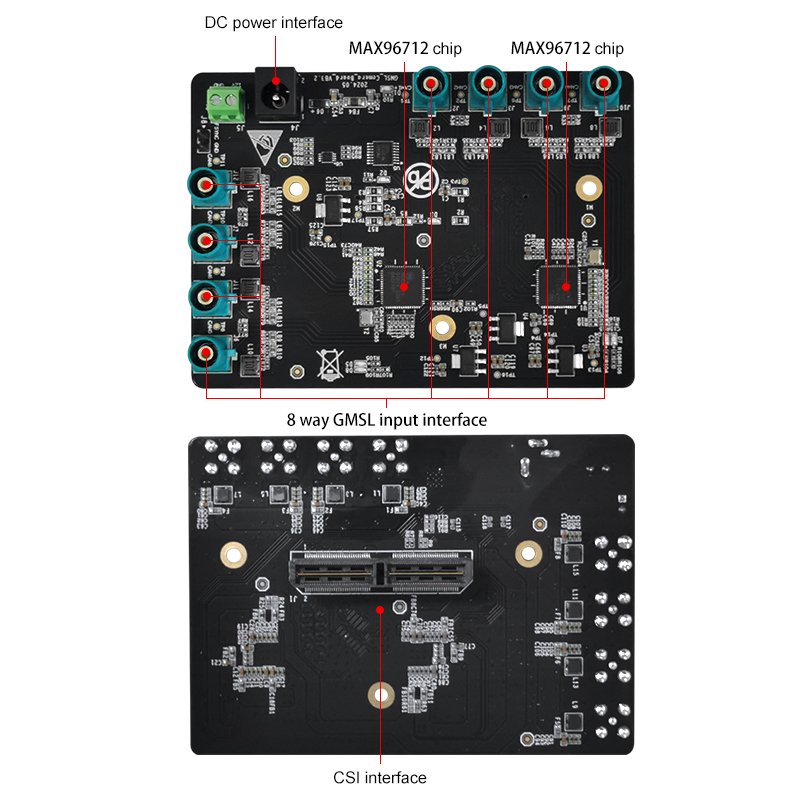

IC Part Number：MAX96712GTB
Function：MAX96712 Deserializer
Input Compatibility：GMSL2 LVDS
Adaptive Processor：NVIDIA Jetson AGX Orin/Xavier
Output Compatibility：MIPI CSI-2
REFCLK：25MHz
MIPI Output：MIPI CSI-2 4 passageway J1 support
MIPI Output Connector：0.50 mm Spacing Q Strip high speed grounding plane wiring strip
LVDS Input：GMSL2 LVDS LVDS Input Connector：FAKRA Z-type connector×8、J2 (port 0)、J3 (port 1)、J9 (port 2)、J10 (port 3)、 J6 (port 4)、J11 (port 5)、J7 (port 6)、J12 (port 7)
GPIO：4 IO multifunctional ports
FPD Link III Operating Mode：CSI-2 mode (compatible with MAX9295A and MAX96717)
Forward Channel Mode：Synchronous mode
FPD-Link Line Rate：3Gbps or 6Gbps
Reverse Channel Rate：187.5 Mbps
DC Power Supply：DC 12V (J4/J5 input)
POC Power Supply：DC 12V (J2 / J3 / J9 / J10 / J6 / J11 / J7 / J12 output)
Size：101.6mm×73.66mm
Operation Temperature：-20 ℃~85 ℃, humidity 95% or lower, non condensing
