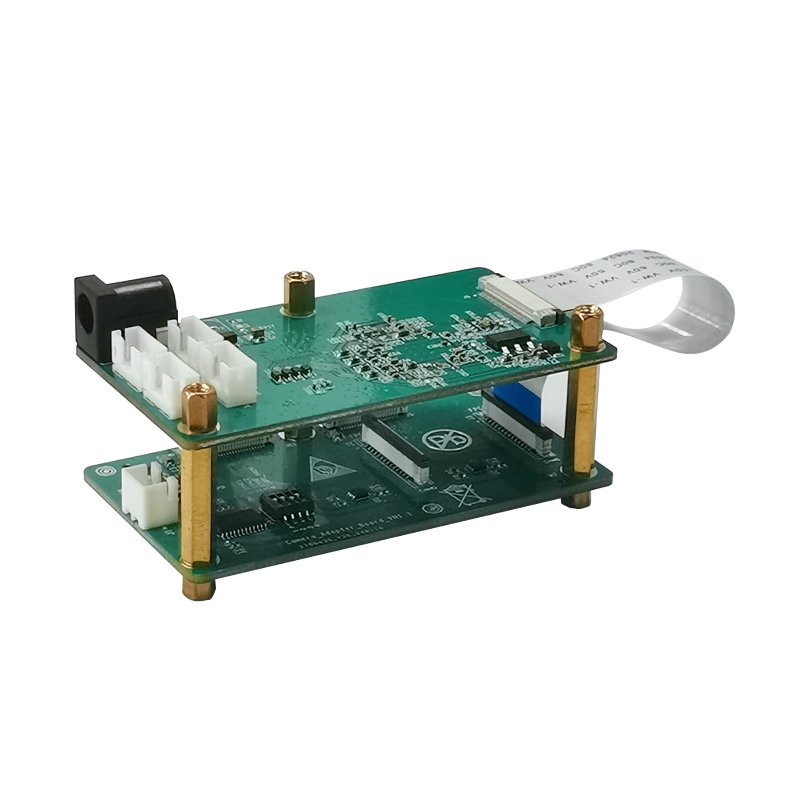

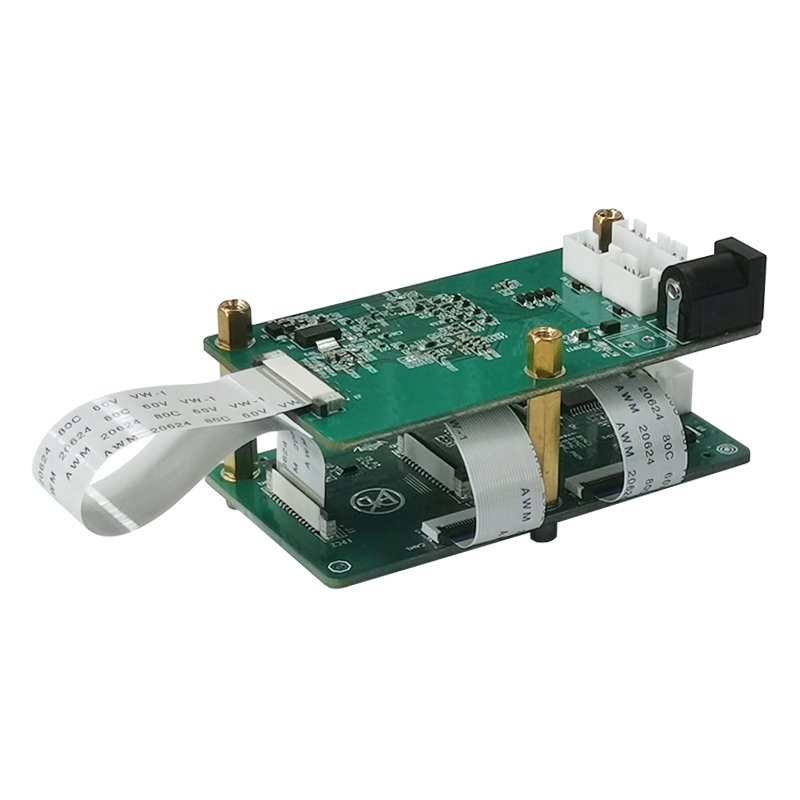

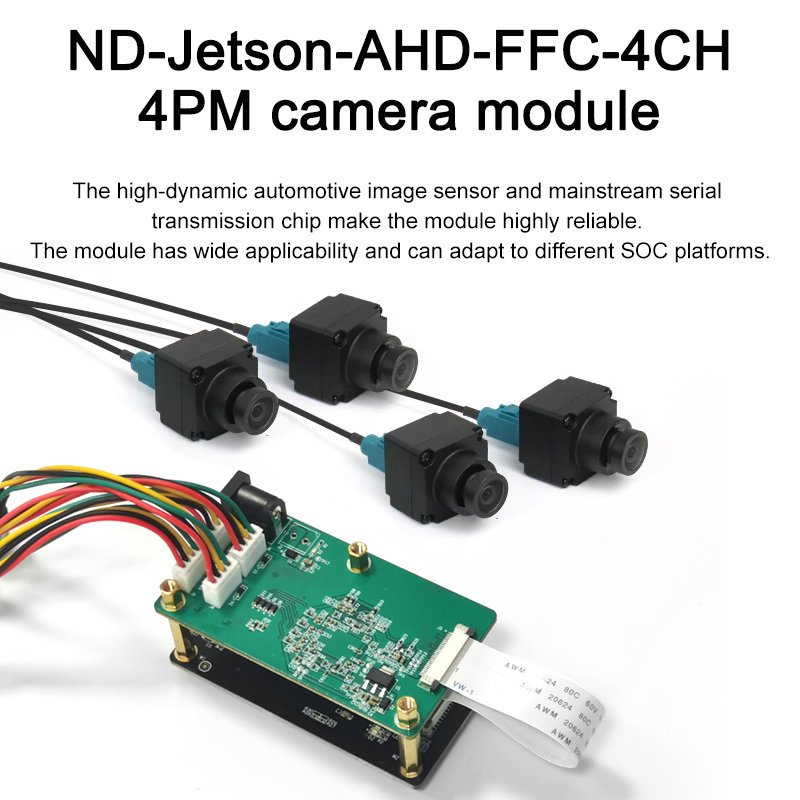

ND-Jetson-AHD-FFC-4CH Product Specifications
IC Part Number：NVP6324
Function：AHD RX Deserializer
Input Compatibility：CVBS/AHD
Adaptive Processor：NVIDIA Jetson AGX Orin
Output Compatibility：MIPI CSI-2
SYS CLK：27MHz
MIPI Output：MIPI CSI-2 4 passageway J3 support

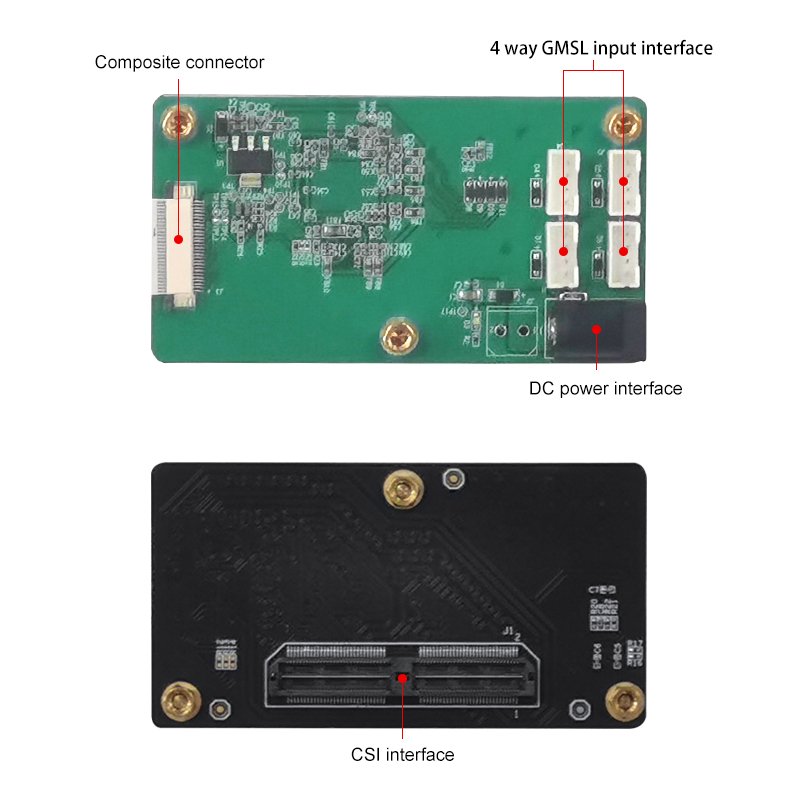

MIPI Output Connector：FFC socket (J3)
Simulate Video Input：CVBS/ AHD
AHD input connector：PH value CON×4, J4 (VIN1)，J5 (VIN2)，J6 (VIN3)，J7 (VIN4)
GPIO：4 IO multifunctional ports
DC Power Supply：DC 12V (J1 input)
POC Power Supply：DC 12V (J4 / J5 / J6/ J7 output)
Size：74.93mm×40.64mm
Operation Temperature：-20 ℃~85 ℃, humidity 95% or lower, non condensing
