Product Introduction
ND-Jetson-GMSL-16CH Product Specifications
IC Part Number：MAX96712GTB
Function：MAX96712 Deserializer
Input Compatibility：GMSL2 LVDS
Adaptive Processor：NVIDIA Jetson AGX Orin/ AGX Xavier
Output Compatibility：MIPI CSI-2
REFCLK：25MHz
MIPI Output：MIPI CSI-2 4 passageway J1 support
MIPI Output Connector：0.50 mm Spacing Q Strip high speed grounding plane wiring strip
LVDS Input：GMSL2 LVDS

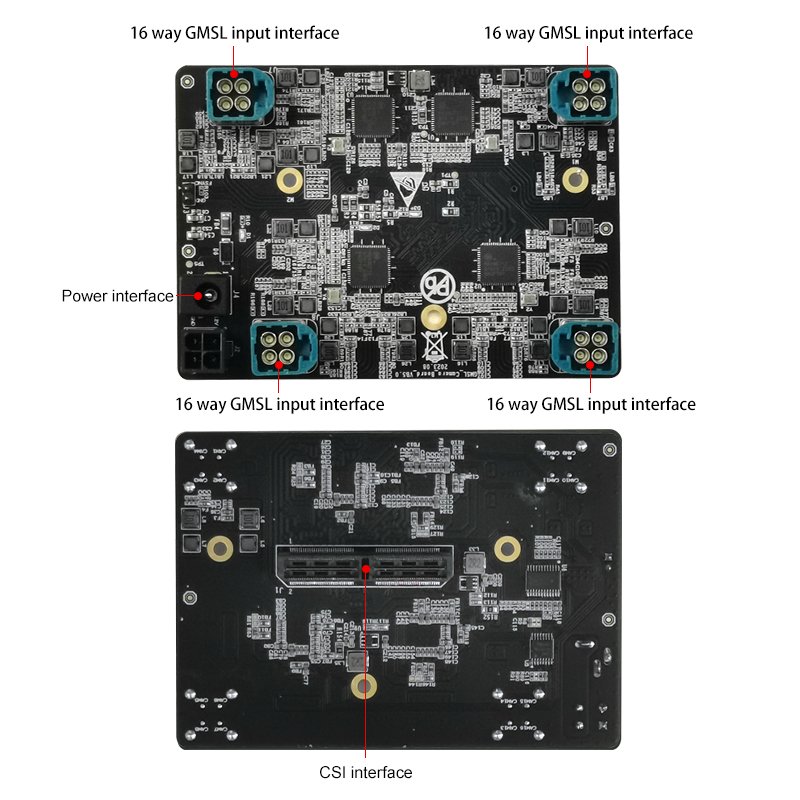

LVDS Input Connector：MINI FAKRA connector×4, J5(Port 0~3), J6(Port 4~7) , J7(Port 8~11) , J8(Port 12~15)
GPIO：3 IO multifunctional ports
FPD Link III Operating Mode：CSI-2 mode (compatible with MAX9295A and MAX96717)
Forward Channel Mode：Synchronous mode
FPD-Link Line Rate：3Gbps or 6Gbps
Reverse Channel Rate：187.5 Mbps
DC Power Supply：DC 12V (J2/J4 input)
POC Power Supply：DC 12V (J5 / J6 / J7 / J8 output)
Size：104.14mm×74.168mm
Operation Temperature：-20 ℃~85 ℃, humidity 95% or lower, non condensing
Product details
