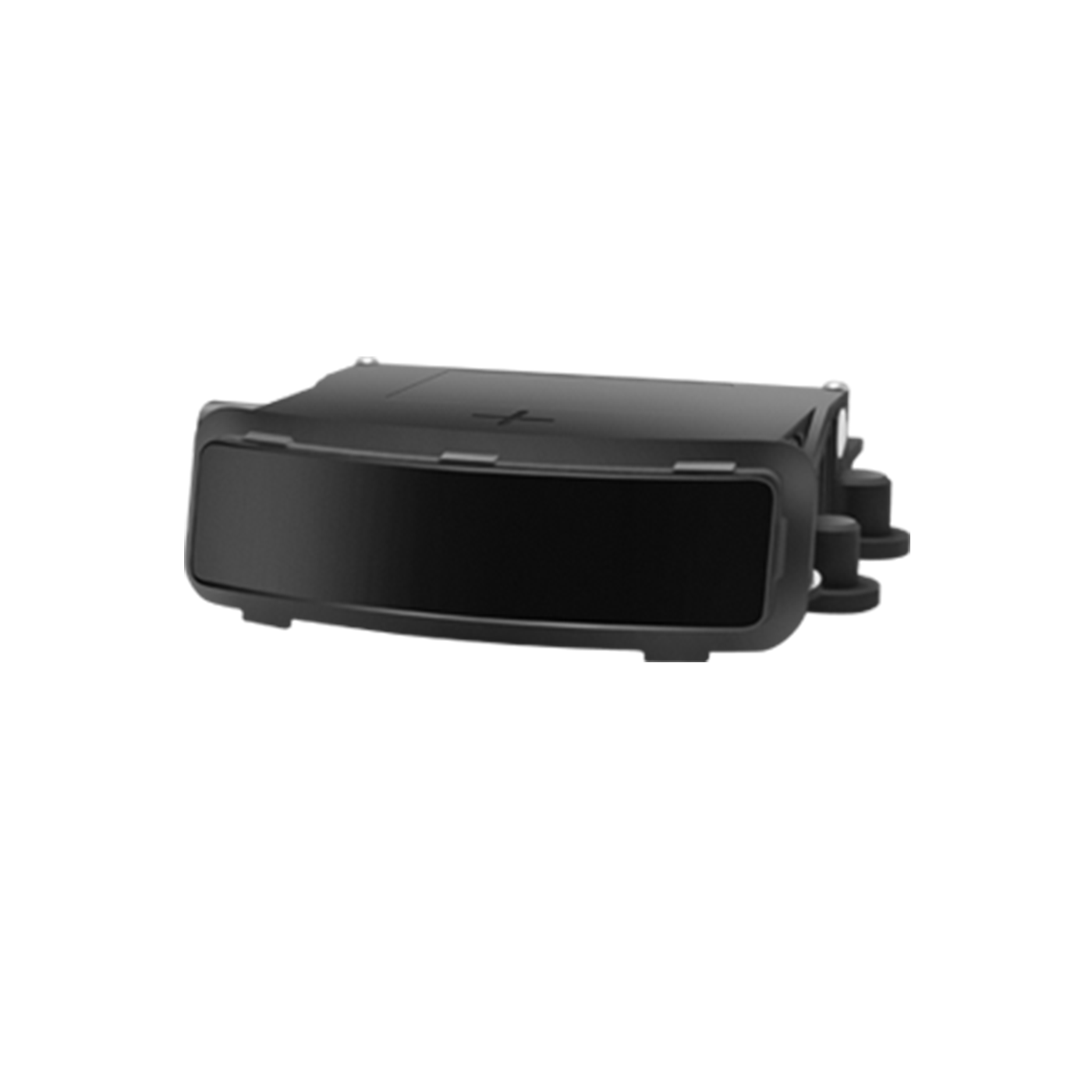

Robin E1X features a 200-meter range at 10% reflectivity with ultra-high resolution of 0.1°×0.2°, which ensures the perception and safety requirements of assisted driving.
The Robin E1X scanning architecture borrows from Falcon’s proven automotive grade design, ensuring stable and reliable performance.
With advanced modular design, Robin E1X can be easily integrated into roof, lights, bumpers or even behind the windshield with compact size and ultra-low power consumption.
Robin E1X features low power design with less than 7W power consumption, providing more efficient and stable driving assistance experience.
Product Parameters
| Lingque E1XLong-range lidar | |
|---|---|
| Detection range | Maximum distance 250m (200m@10%) |
| Field of view (H×V) | 120°×20° |
| Angular resolution (H×V)* | 0.1° × 0.1° (ROI) |
| laser wavelength | 940nm, Class 1 (IEC-60825) |
| Power consumption | 6W |
| size | 31 x 106 x 101 (mm) |
Superior performance for a safer travel experience
The Lingque E1X boasts the current mainstream detection level of forward-facing LiDAR, with a standard detection range of up to 200 meters and a maximum image-level resolution of 0.1°×0.1°, providing rich detail perception and helping to improve the safety performance of assisted driving.
Ultra-low power consumption, long battery life
The Lingque E1X adopts a low-power design with an overall power consumption of 6W, achieving ultra-long battery life while providing better heat dissipation and a more efficient and stable driving assistance experience.
Exquisite and compact, flexible and adaptable
The Lingque E1X adopts cutting-edge optoelectronic technology, combined with an excellent scanning solution and a highly modular design, which makes it have excellent performance while having a thinner and lighter appearance and lower power consumption. It can fit the body structure and vehicle appearance and be easily integrated into different positions such as the roof, behind the windshield, headlights, and bumpers.
Automotive-grade mass production, stable and reliable
Tudatong possesses extensive experience in automotive-grade mass production, ensuring the stability and reliability of its products. The Lingque E1X has undergone numerous rigorous tests and verifications, providing accurate driving assistance information in real time to contribute to a safer and more comfortable driving experience.
