Product Introduction
NVIDIA Jetson Orin Nano Product Specifications
Motherboard：Jetson Orin Nano 4GB/Jetson Orin Nano 8GB (Official Kit)
AI Performance：Up to 20 (Sparse) INT8 TOPs and 10(Dense)INT8 TOPS/Up to 40 (Sparse) INT8 TOPs and 20 (Dense)INT8 TOPS
GPU：512 NVIDIA® CUDA® cores16 Tensor cores/1024 NVIDIA® CUDA® cores 32 Tensor cores
CPU：6-core (ON 8GB and ON 4GB) CortexA78AE ARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture
Audio：Dedicated programmable audio processor
Video Memory：4GB 64-bit LPDDR5 DRAM/ 8GB 128-bit LPDDR5 DRAM
Network：10/100/1000 BASE-T Ethernet
lmaging：Eight lanes MIPI CSI-2 | D-PHY 2.1 (20 Gbps)
Display：1× 4K30 DP 1.2 (+MST for 2× 1080p60), HDMI 1.4, eDP 1.4
Video Decoding：H.265 (HEVC), H.264, VP9, AV1 1× 4K60 (H.265)，2× 4K30(H.265)，5× 1080p60(H.265)，11× 1080p30 (H.265)
Video Coding：1080p30 Supported via CPU Cores with Software

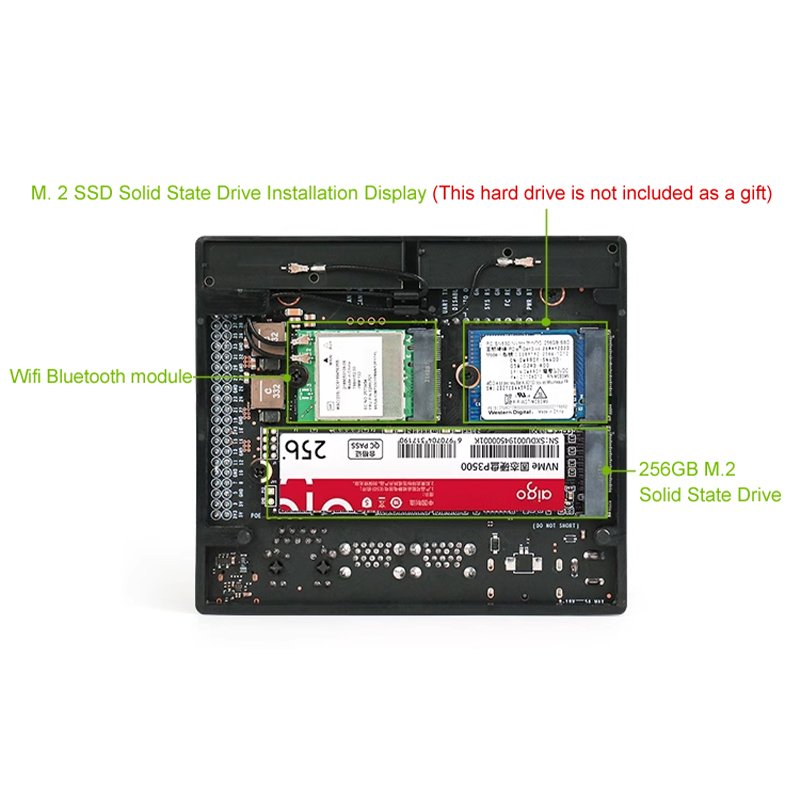

Storage：Supports External Storage (NVMe)
Specification and Size：69.6 mm× 45 mm | 260 pin SO-DlMM Connector
Operation Temperature：-25-90°C
Power Input：5V-20V
Power Consumption：5W | 10W/7W | 15W

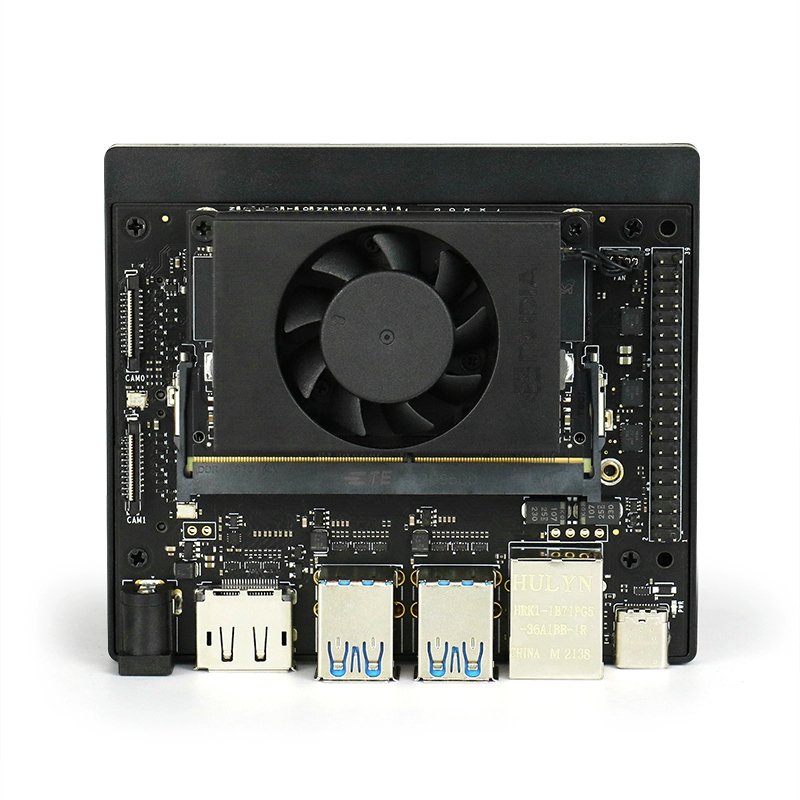

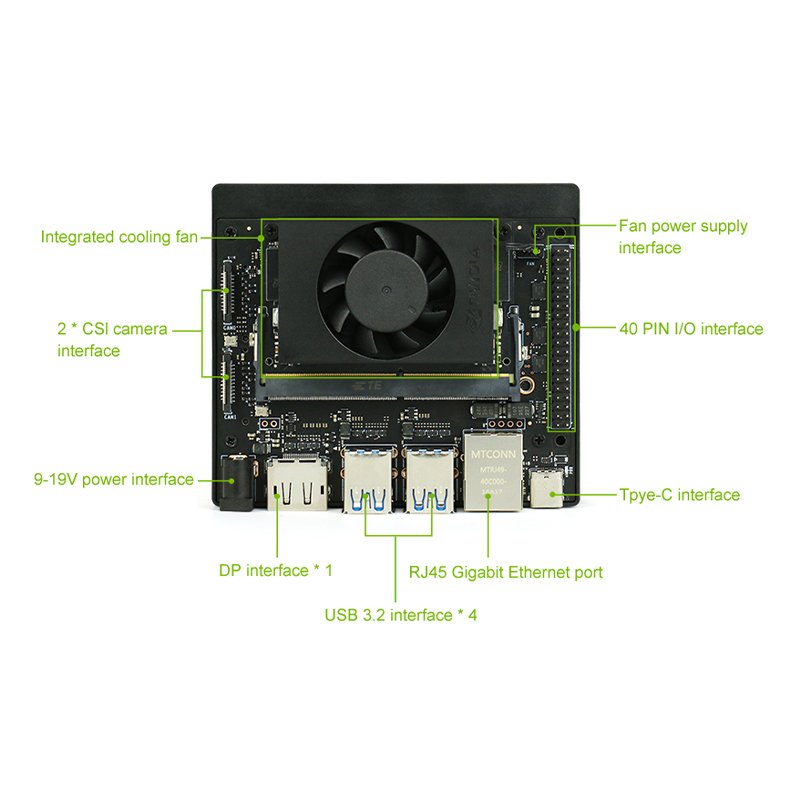

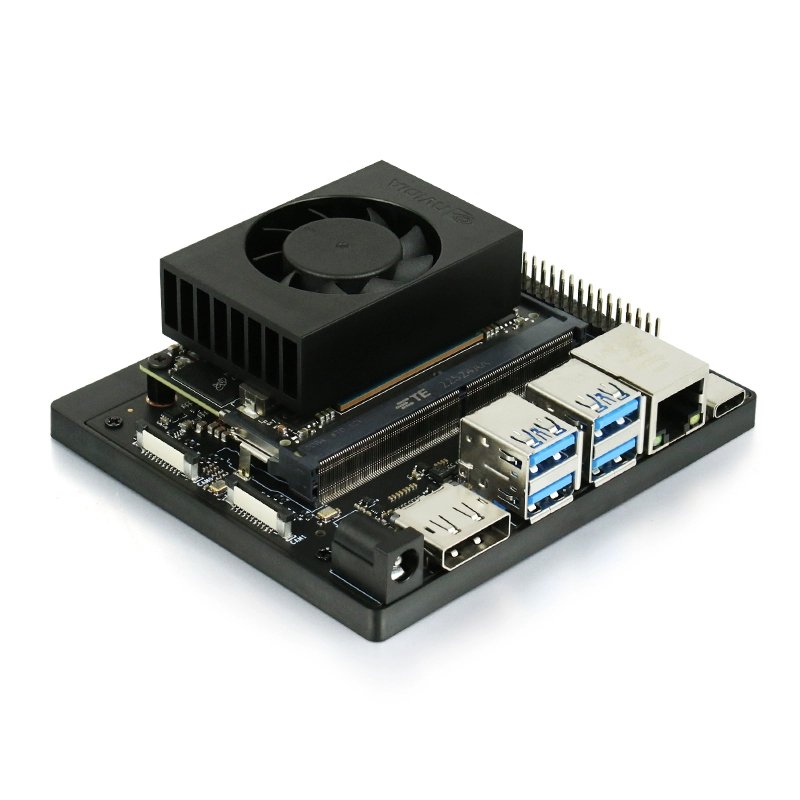

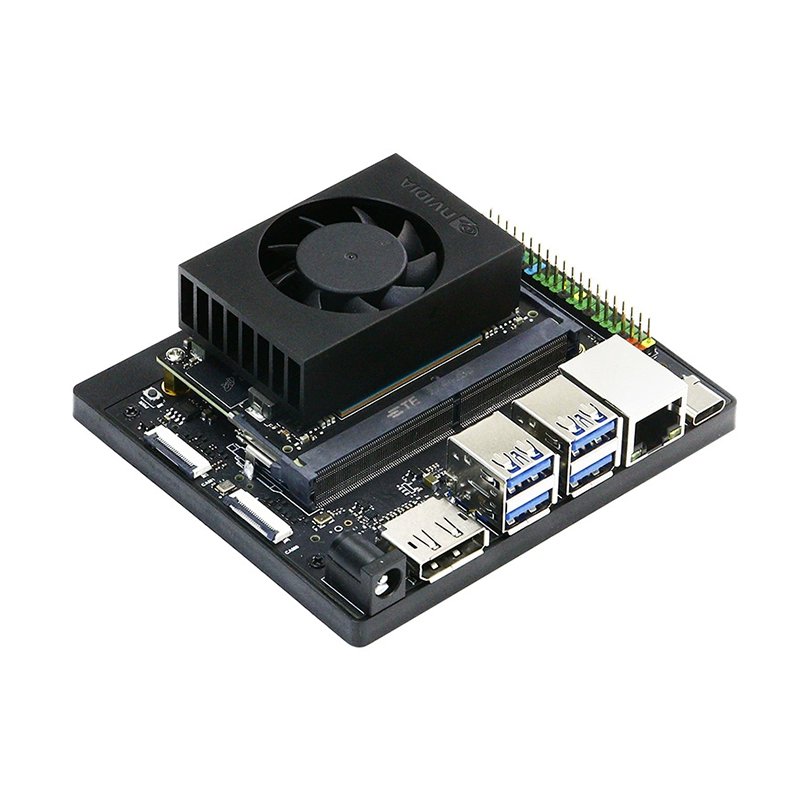

Product details
