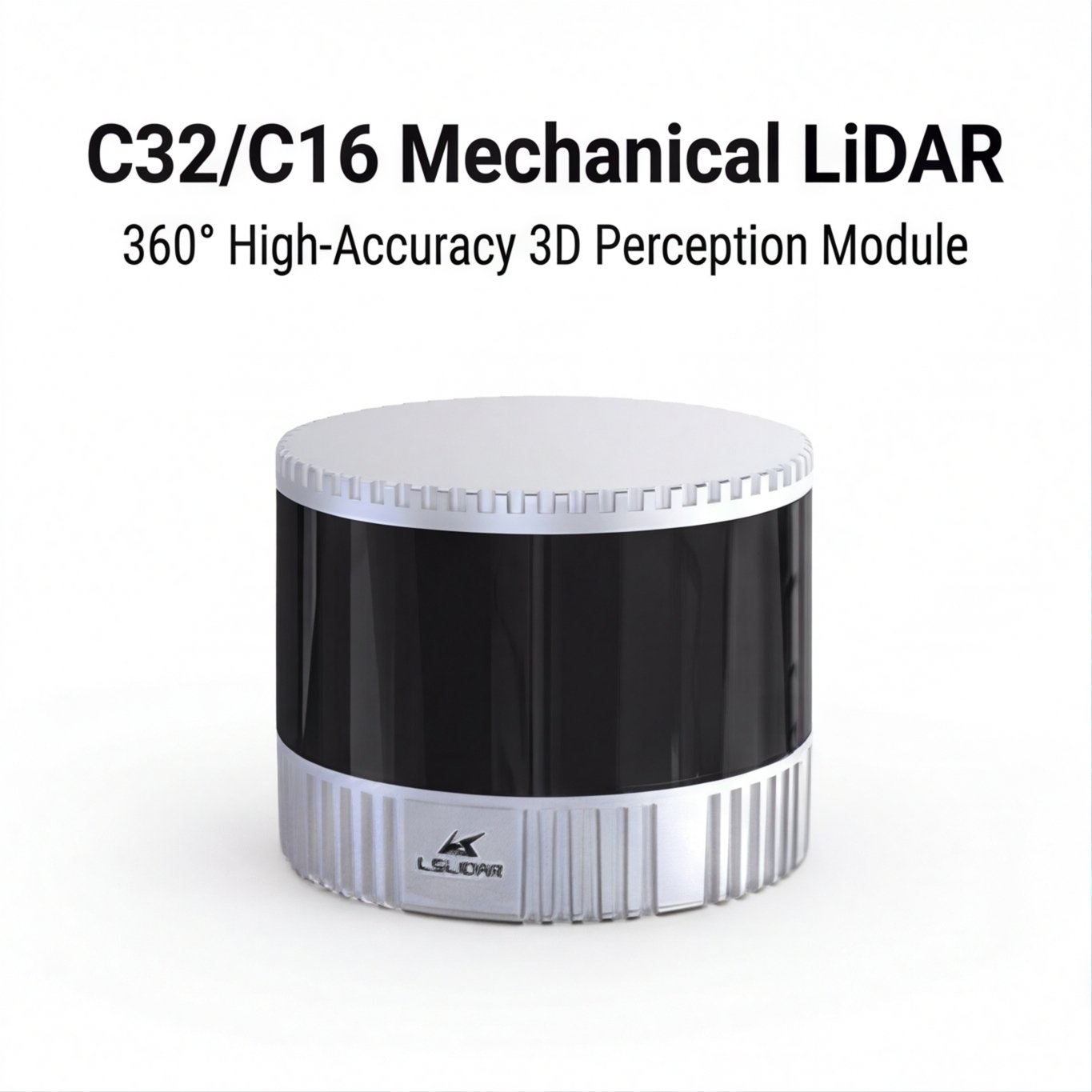

32/16-Line Mechanical LiDAR

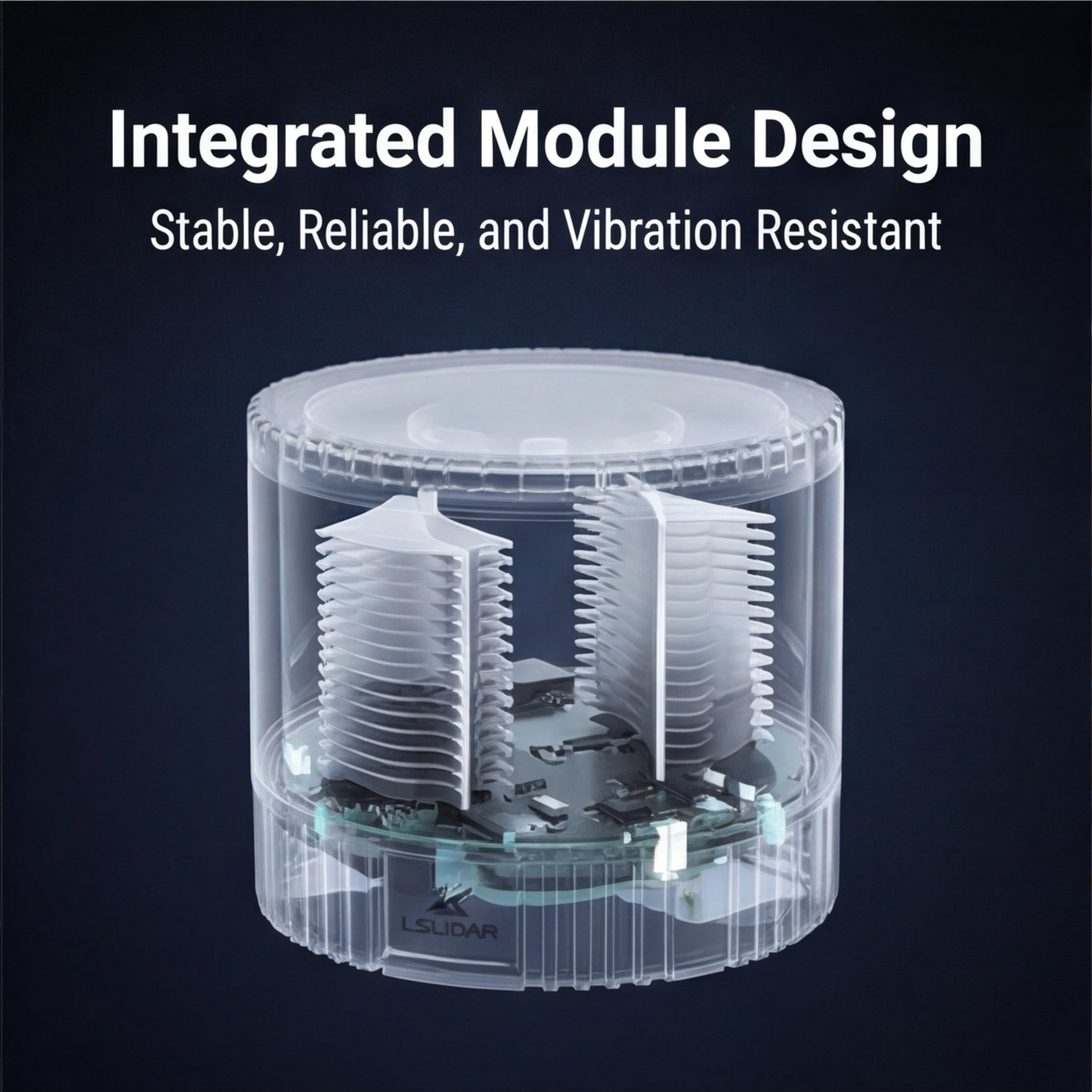

360° 3D High Accuracy Perception ;Highly Integrated Module Design Realizes Stable and Reliable Performance
Product Introduction
The LS C16 3D LiDAR module adopts the TOF measurement principle, is suitable for both indoor and outdoor use, supports ROS and ROS2, and meets Class I eye safety standards.

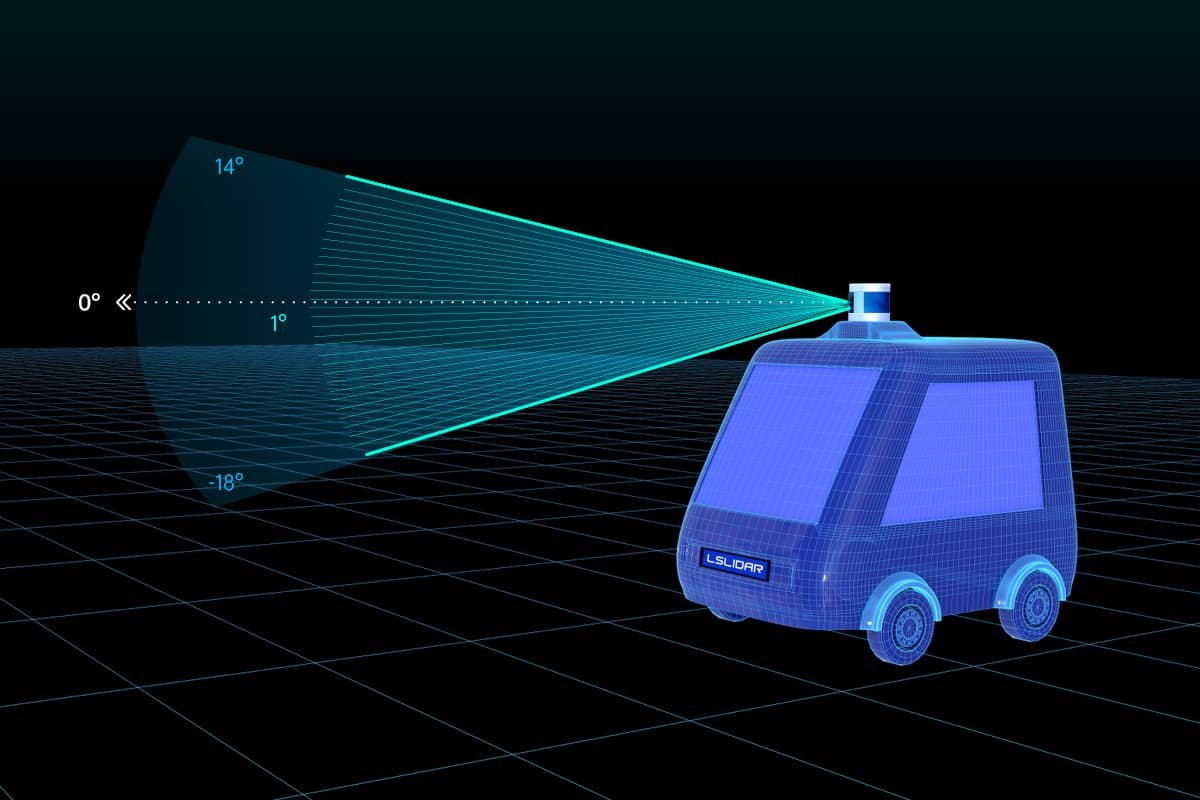

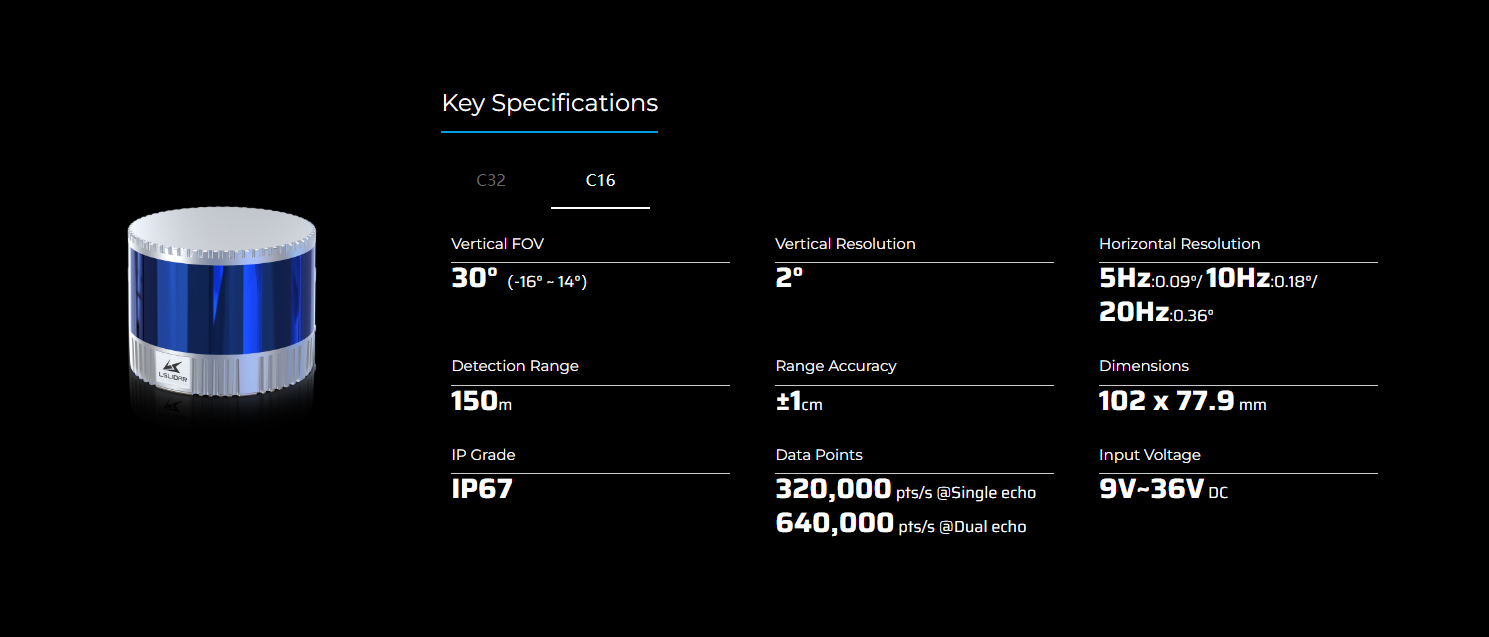

The LS C16 3D LiDAR module is a 16-line, 360-degree high-speed scanner with a vertical viewing angle of ±30°, a resolution of 2°, a maximum measurement distance of 100 meters, and a measurement accuracy of ±3 cm.
It is widely used in autonomous vehicles, ADAS, intelligent transportation, robotics, logistics, surveying and mapping, security and protection, and other fields.
Product Profile
Overview
The C16 lidar realizes 360° three-dimensional high-speed scanning with 16 laser150 m, measurement accuracybeams. lt reaches a detection diof +3 cm, and a minimum vertication of 2°. This lidar sensor iswidely used in unmanned drivin!DAS, intelligent transportation,service robot, logistics, surveyilsecurity, industry, ports andother fields.
Mechanism
The C16 mechanical lidar adopts the Time of Flight method. The lidar startstiming (t,) when the laser pulses are sent out. And when the laser encountersthe target object and the light returns to the sensor unit, the receiving end stopstiming .
