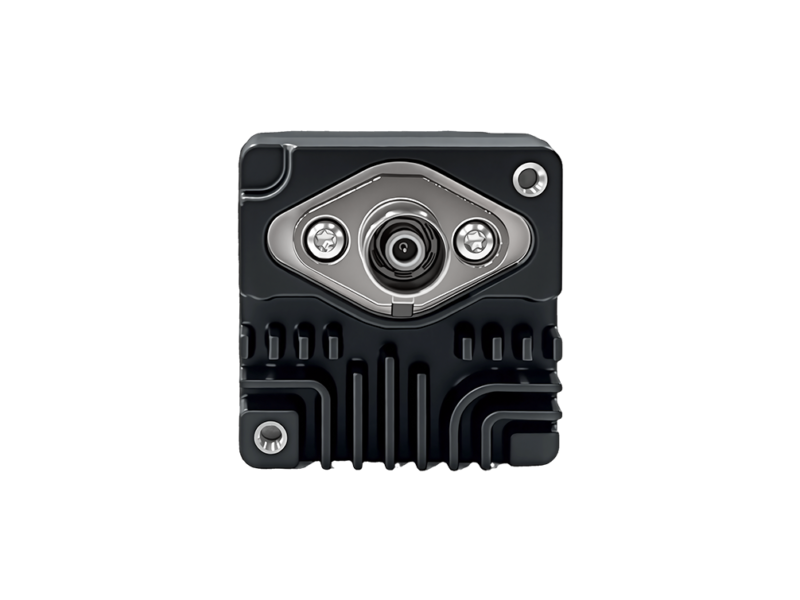

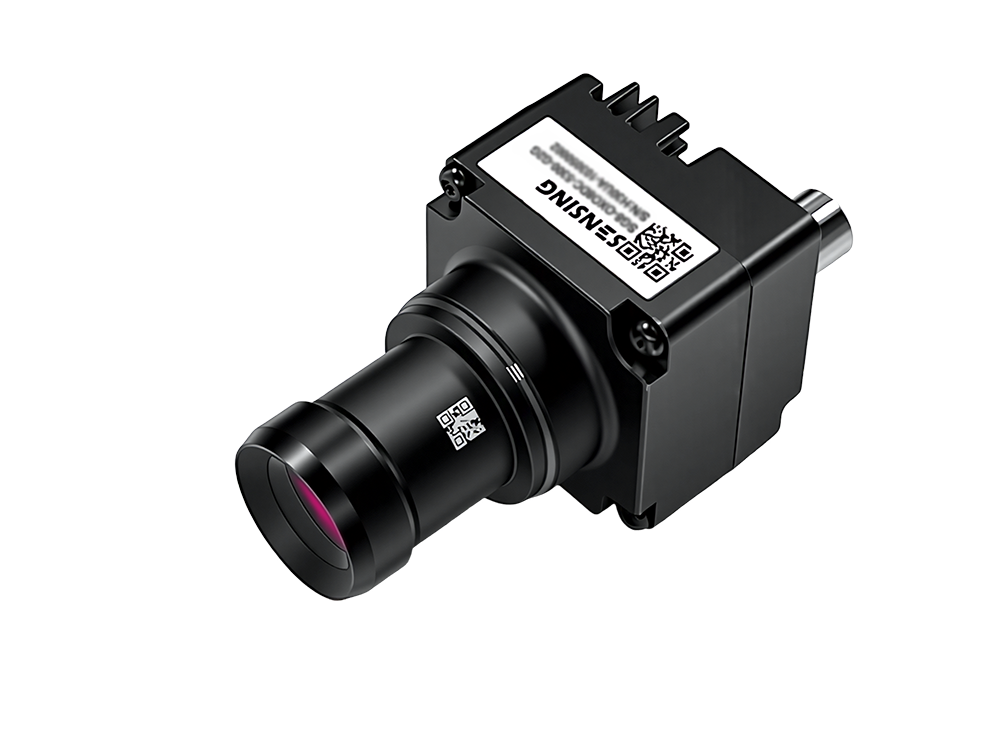

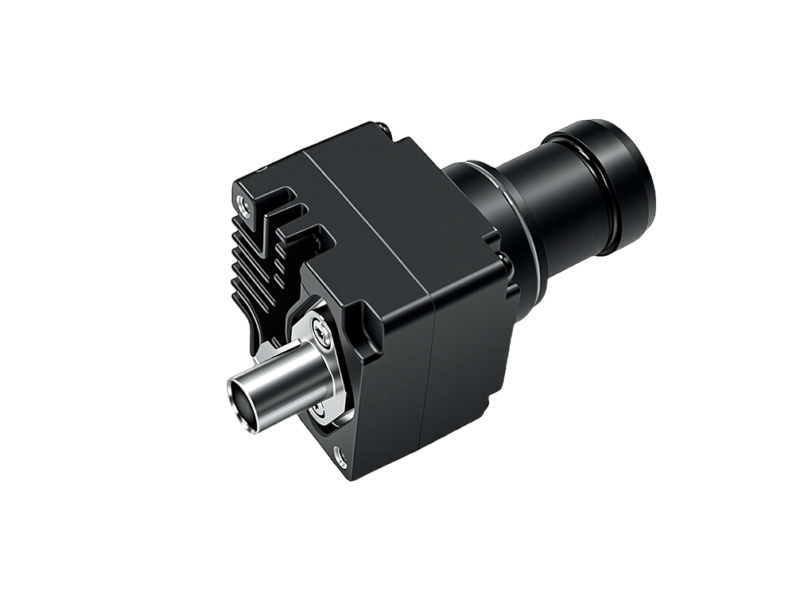

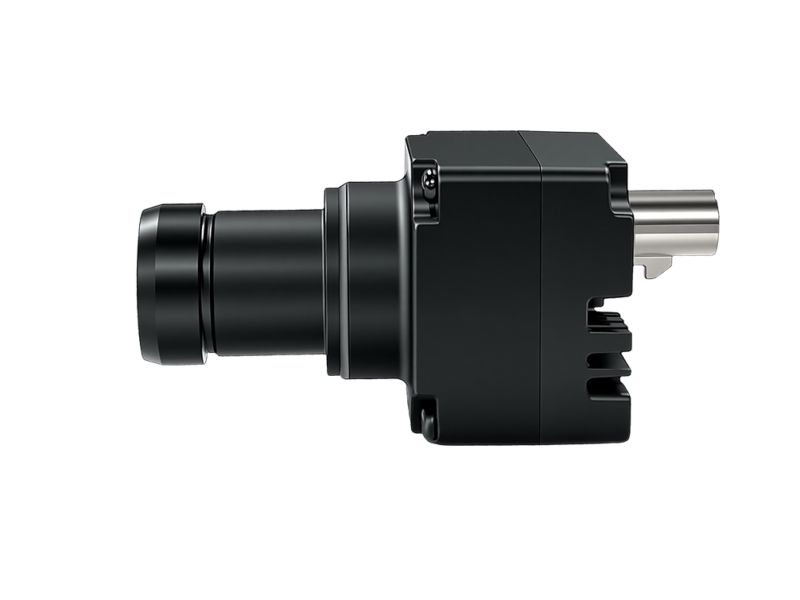

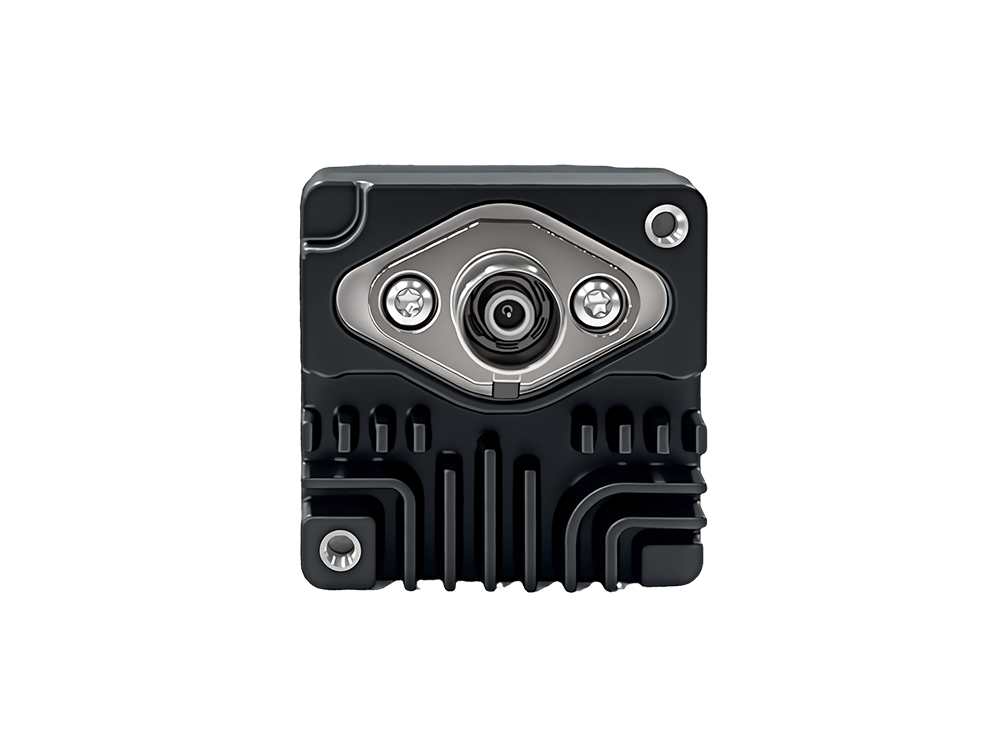

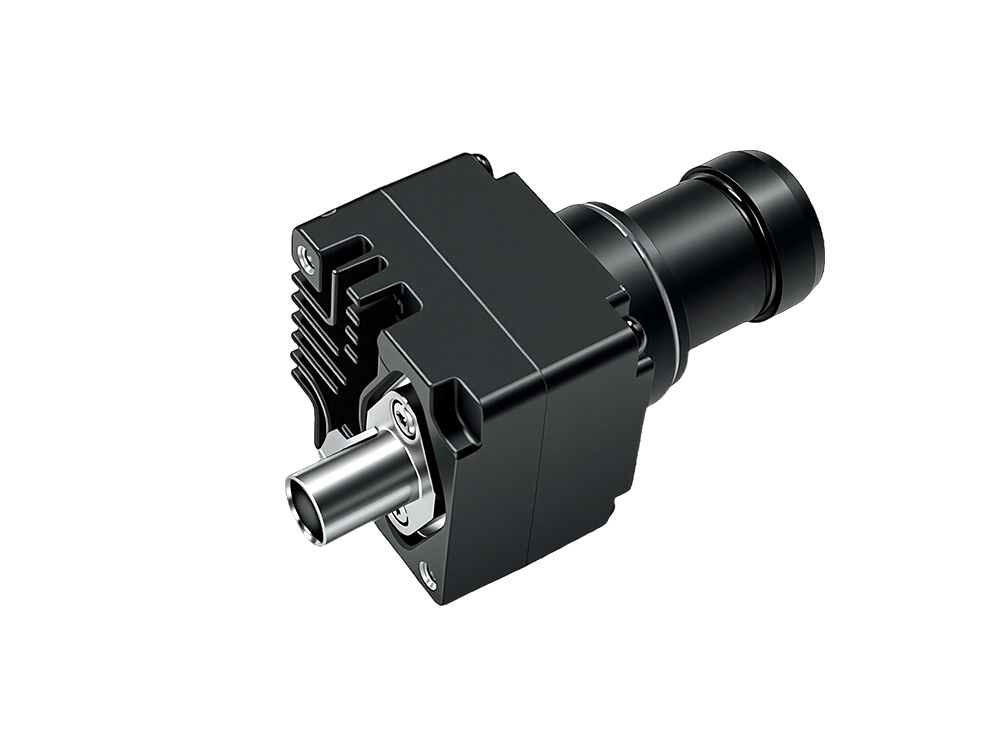

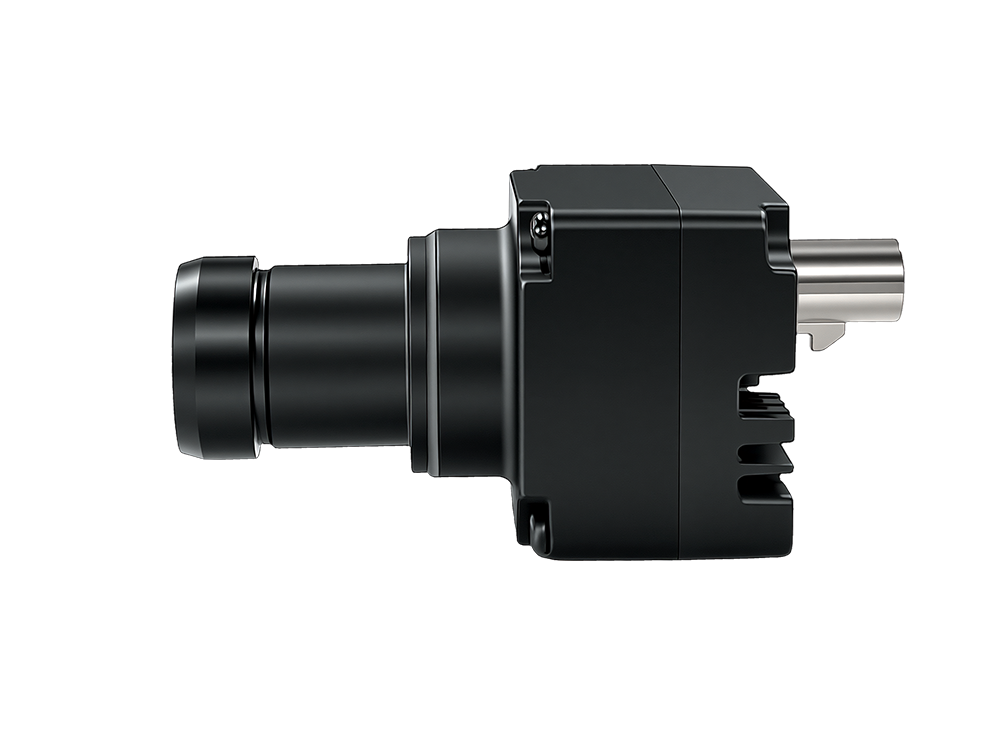

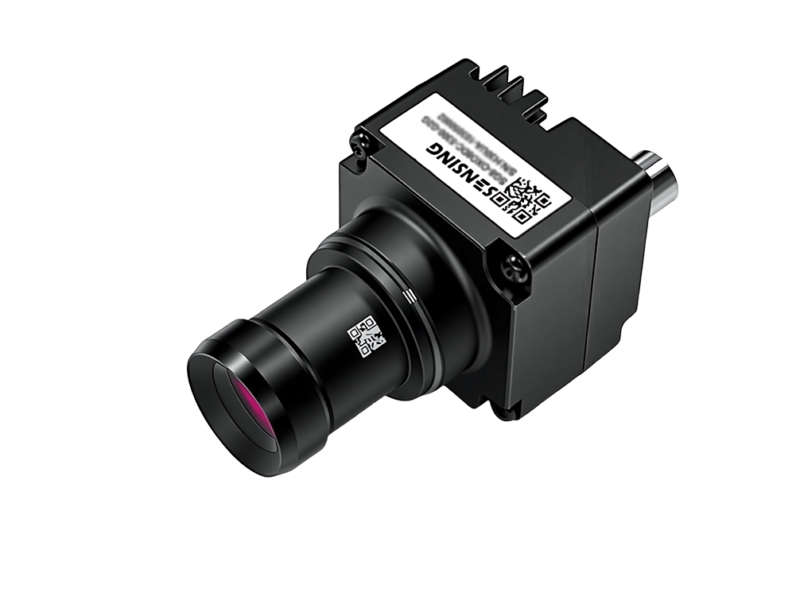

camera module：SG8-OX08DC-5300-G2G [8MP]

Model：SG8-OX08DC-5300-G2G-Hxxx

Resolution： 3840H*2160V

Frame Rate Max： 45fps

Sensor： OMNIVSION 8.3MP OX08D10 RGGB

ISP： GW5300

Output data： YUV422@8bit

Serializer： MAXIM MAX96717

Sensor Type： Rolling Shutter

Operating temp.range： -40°C～+85°C

Dimensions： 30mm*30mm*22.57mm

FOV ：HFOV 30°/60°/120°

Image Size ：1/1.73 inch CMOS

Overview

SG8-OX08DC-5300-G2A-Hxxx camera module is equipped with OMNIVSION CMOS image sensor OX08D10 and Maxim GMSL2. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure – is supplied with an AA lens that is focused and glued in our factory.

Product Default

The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope.

When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera’s internal parameters and write them into the camera storage unit, please make a note when placing an order.

Development/Capture Kits

Adapter board/Image Solution	Adaptation Developer kit/output interface	Max camera inputs	Picture(DOWN)
SG8A-ORIN-GMSL2‍ Adapter board	NVIDIA Jetson AGX Orin/AGX XavierDeveloper kit	8	OMNIVSION CMOS image sensor
SerDes Camera to USB ConverterSG8-U30-GMSL2	NVIDIA Jetson Orin Nano/NXDeveloper Kit ARM platform/computer/industrial computer/USB3.0 interface	1	Compatible with UVC protocol, providing upper computer acquisition software <Image2>
CoaxCapture II GMSLCapture Card	PC/IPC/PCIe3.0	8	CoaxCapture II GMSLCapture Card
※ If you need relevant development support, please contact lidarseek.com
